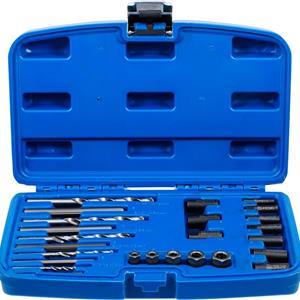

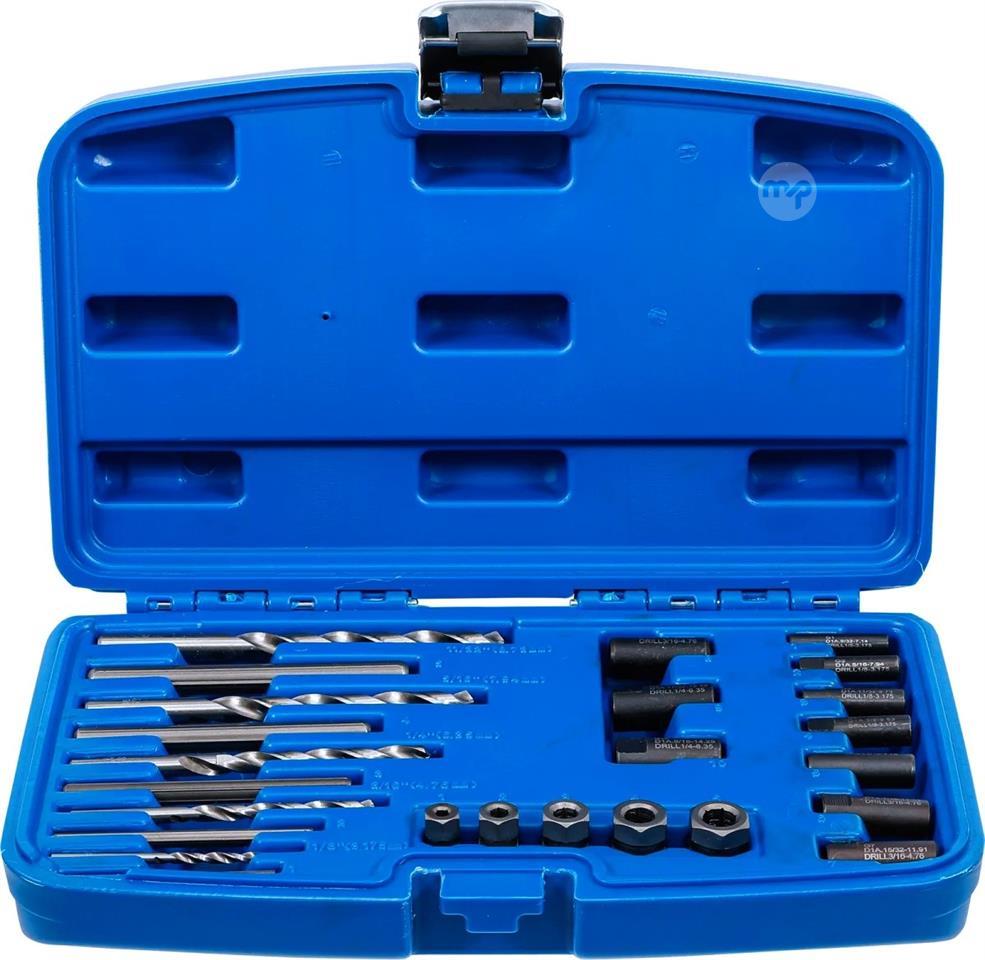

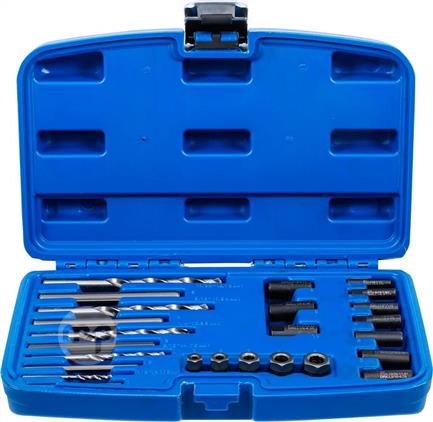

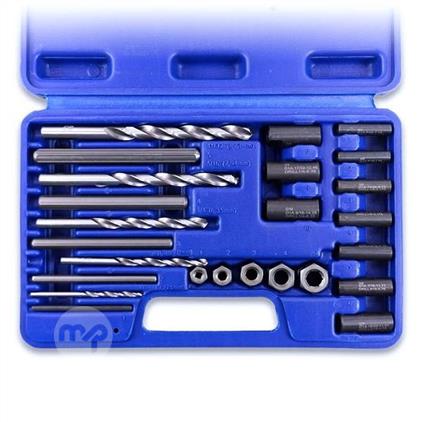

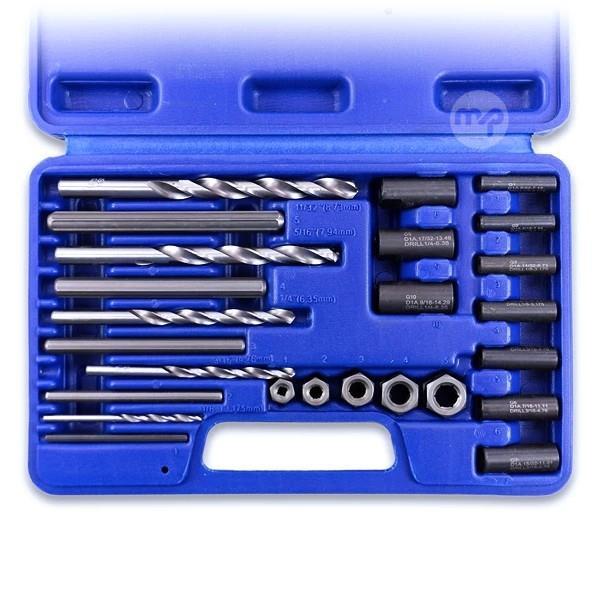

HSS screw extractor set, 25 pieces,

Suitable for broken screws and studs.
Guide bushings enable the drill bit to be centered on internally broken and protruding threaded bolts.
Even threaded bolts that are flush with the surface can be pre-drilled using a punch.
For internally threaded bolts, the guide sleeves are inserted into the existing hole, pre-drilled and then drilled out accordingly if necessary.
For externally threaded bolts, the guide sleeves are placed on the existing threaded bolt, pre-drilled and then drilled out accordingly if necessary.
For flush-broken threaded bolts, the centering is created using a punch (not included in delivery), pre-drilled and then drilled out accordingly if necessary.
The corresponding extraction bolt is driven into the drilled out threaded bolt.
By placing the extraction nut on the previously driven extraction bolt, the threaded bolt can now be easily unscrewed.
Set consisting of:
5 x HSS twist drills, each with diameter x length 3.2 mm x 65 mm, 4.8 mm x 85 mm, 6.4 mm x 100 mm, 8.0 mm x 115 mm and 8.7 mm x 123 mm
5 x extractor bolts, each with diameter x length 3.2 mm x 55 mm, 4.8 mm x 72 mm, 6.4 mm x 81 mm, 8.0 mm x 86 mm and 8.7 mm x 96 mm
5 x extractor nuts, each with diameter x wrench size 3.2 mm x 10 mm, 4.8 mm x 11 mm, 6.4 mm x 13 mm, 8.0 mm x 14 mm, 8.7 mm x 17 mm
10 x drill guide bushes, one each in the sizes
inner diameter 3.2 / 4.8, outer diameter 7.1 mm, length 30 mm
inner diameter 3.2 / 4.8, outer diameter 7.8 mm, length 30 mm
Inner diameter 3.2 / 4.8, outside 8.5 mm, length 30 mm
Inner diameter 3.2 / 4.8, outside 9.1 mm, length 30 mm
Inner diameter 4.9 / 7.2, outside 10.1 mm, length 30 mm
Inner diameter 4.9 / 7.2, outside 10.9 mm, length 30 mm
Inner diameter 4.9 / 7.9, outside 11.8 mm, length 30 mm
Inner diameter 4.9 / 7.9, outside 12.5 mm, length 30 mm
Inner diameter 6.5 / 9.7, outside 13.1 mm, length 30 mm
Inner diameter 6.5 / 9.7, outside 14.1 mm, length 30 mm
Completely sorted in a plastic case
Tool of the highest quality
for a long service life in daily workshop use
