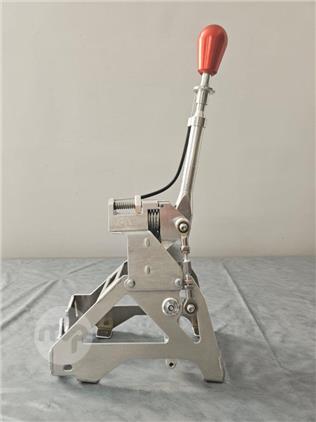

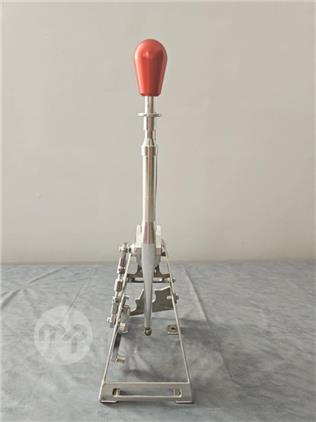

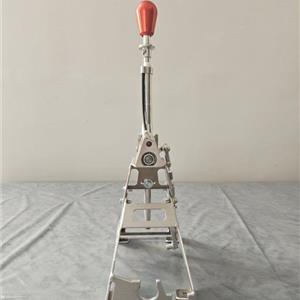

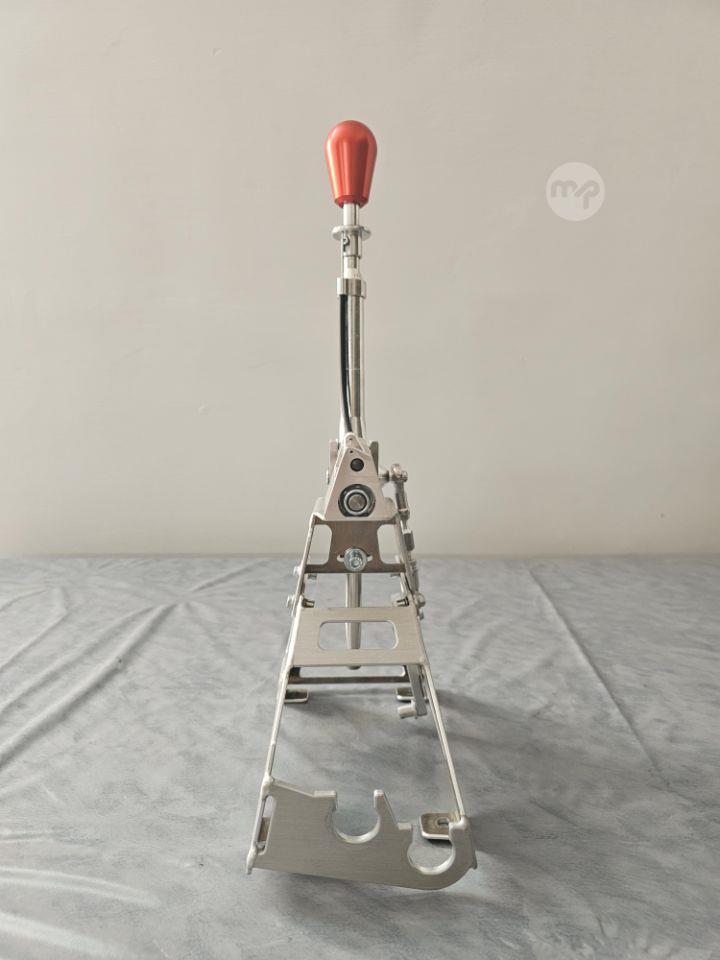

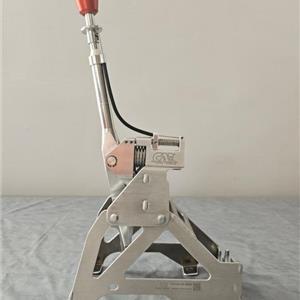

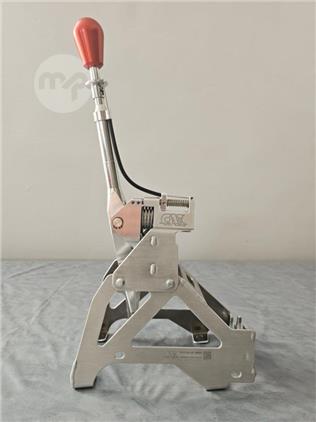

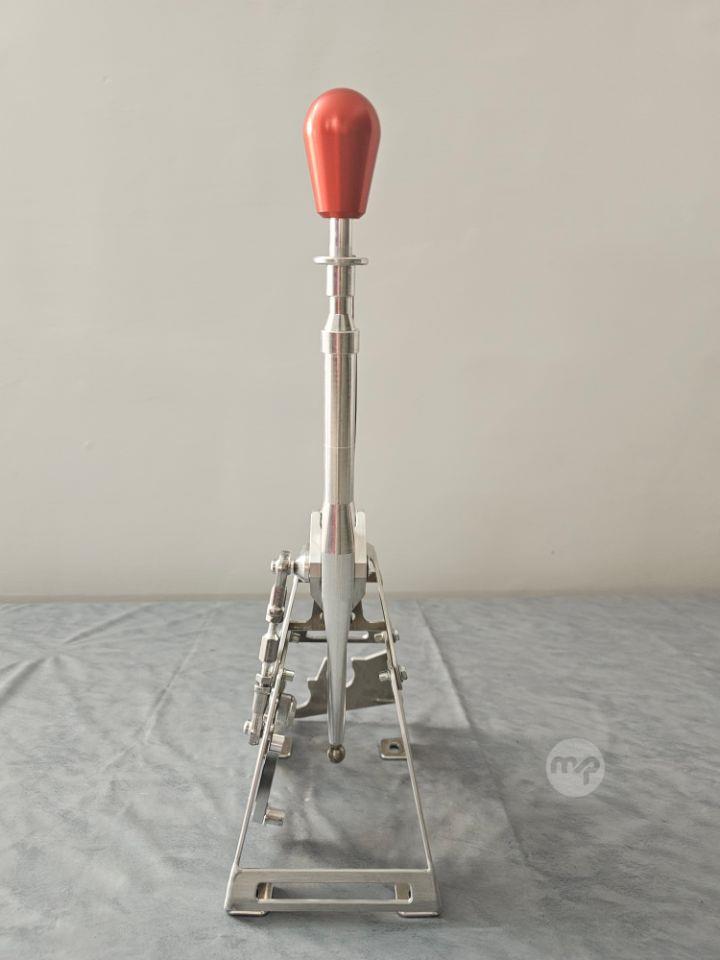

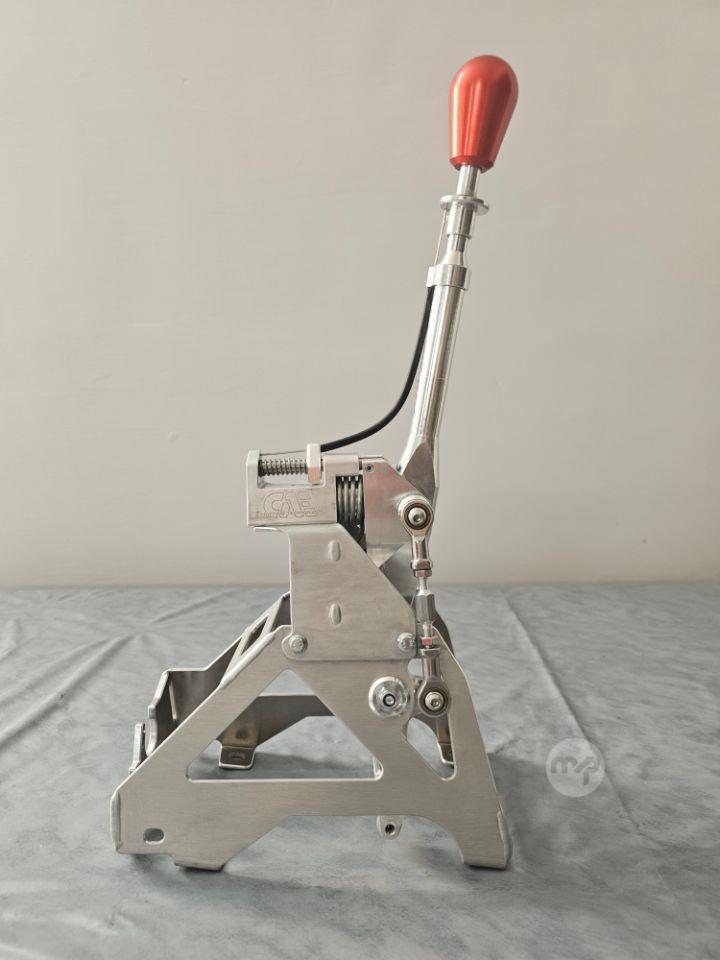

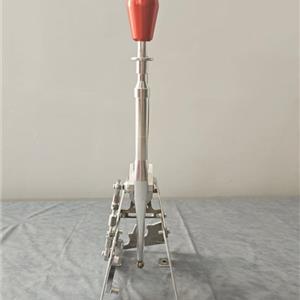

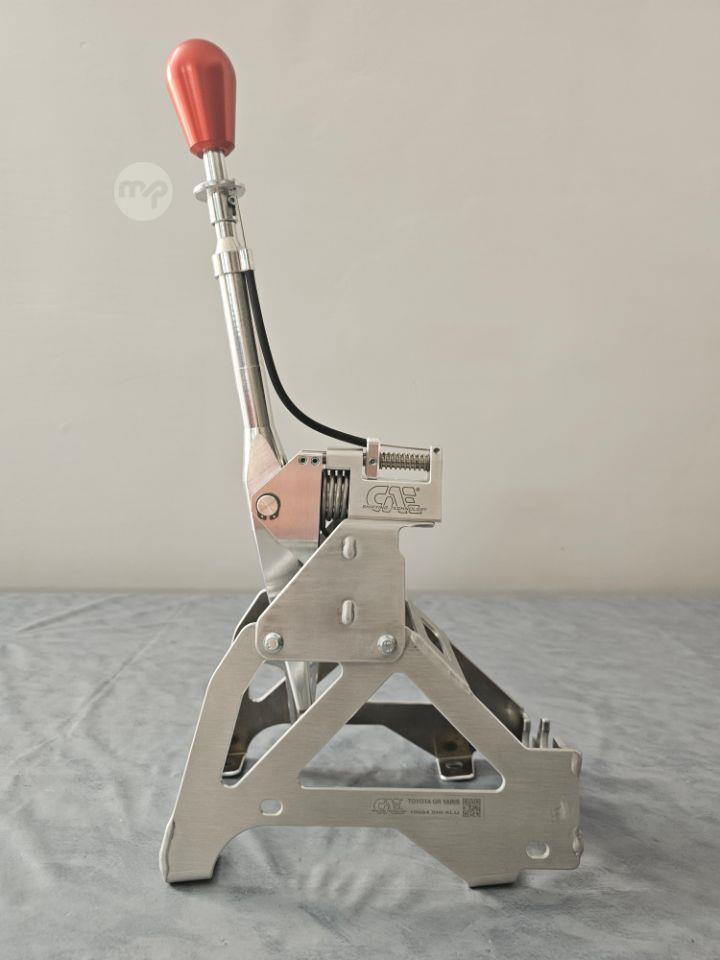

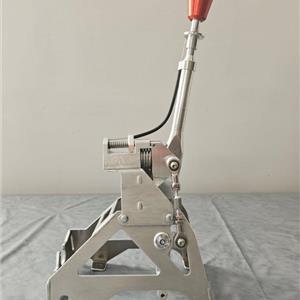

CAE Ultra Shifter for GR YARIS with 6 speed manual transmissions
for Pre-Facelift and Facelift models

2 piece shifter housing for easy Installation with centerconsole

shifter fits to stock shiftcables

Short and super-precise shift travel, exclusively H-pattern.

The clutch system remains in its original form

: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 70 x 55

The reverse gear is unlocked by pulling up the sliding collar on the shift lever.

Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed for an perfect Surface.

Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.

Right/left stops and reverse gear stop adjustable separately.

centre console have to be slightly modified for installation ( see Pictures)

Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam.

Total height:approx. 390 mmTotal length:approx. 235 mmDimensions of base plate:approx. 235 x 125 mmShifting travel:approx. 70 mmSelector travel (transverse direction):approx. 55 mmWeight (complete):approx. 1,05 kgOffset of the gear lever knop (back / up):depending on vehicle type approx. 20 / 100 mm
