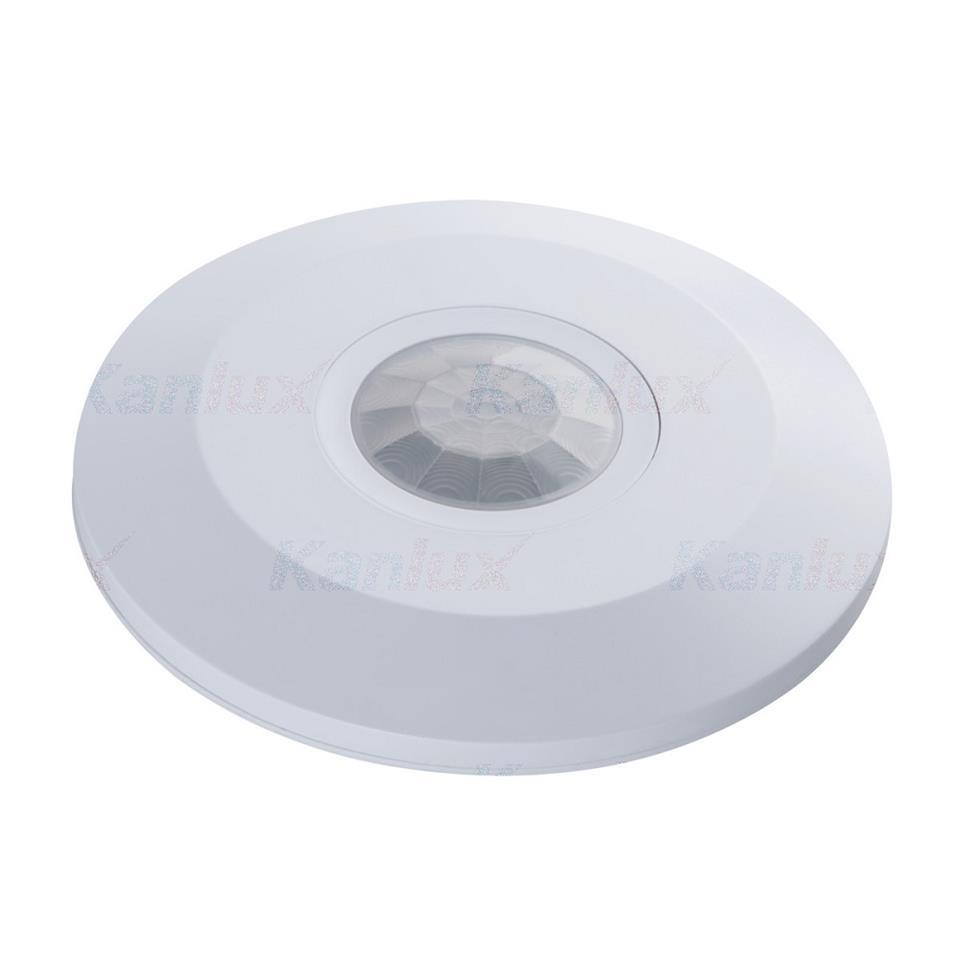

PIR motion sensor ZONA FLAT-W Kanlux Kanlux ZONA FLAT is the motion sensor with a maximum motion detection range of 8m. On the other hand, its maximum horizontal operating angle is 360 degrees. With the ZONE sensor it is possible to adjust the lighting time from 10sec to 15min and also set the external lighting level in the environment in which the device will work. Basic information EAN13:  5905339234520 Vendor code: 23452 Color :  white Material :  plastic material Place of use :  inside   Weight and dimensions Height [mm]:  25 Diameter [mm] :  115 Weight : 110g   Technical data Rated voltage [V]:  220-240 AC Nominal frequency [Hz] :  50/60 Color :  white Maximum power [VA] :  2000 IP degree 20 Mounting location :  ceiling mounting Degree of protection against electric shock :  II Can be mounted on normally flammable surfaces :  yes Sensor range [m] :  max 8  Sensor range [°] :   H 360 / V120 Minimum run time [s] :  10 Maximum running time [min] :  15 Sensor operating time [second-minute] :  10-15  Sensor type : PIR Setting the brightness with which the sensor detects motion [lx] :   3-2000  Micro-interval between contacts of the relay: yes Operating temperature [°C] :  5  25 Type of connection :  terminal block Sections of cables used [mm] :  0,75  1,5
