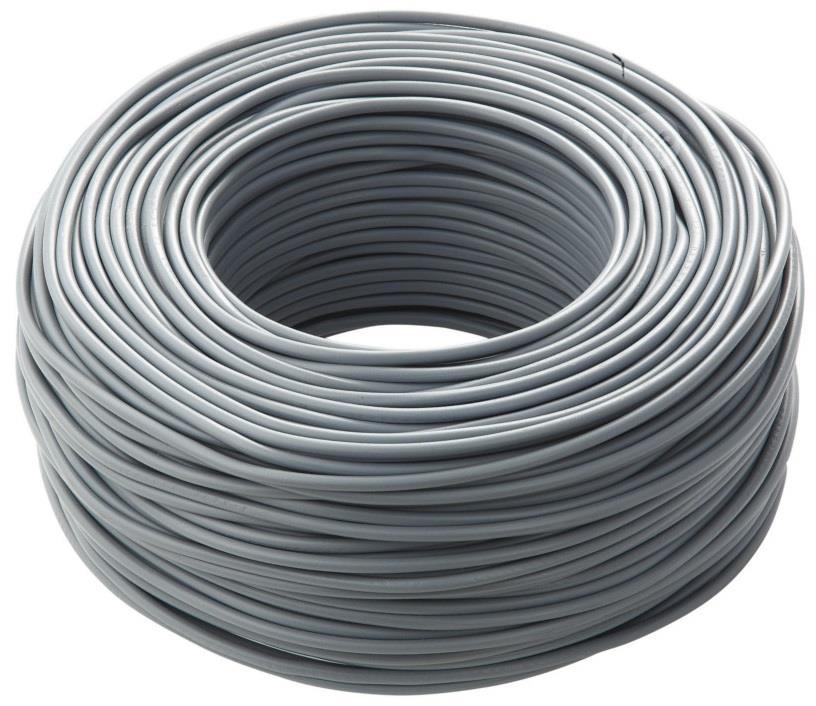

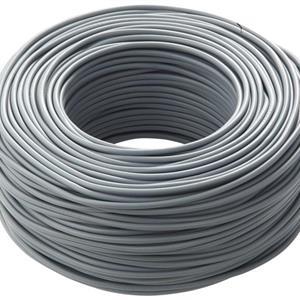

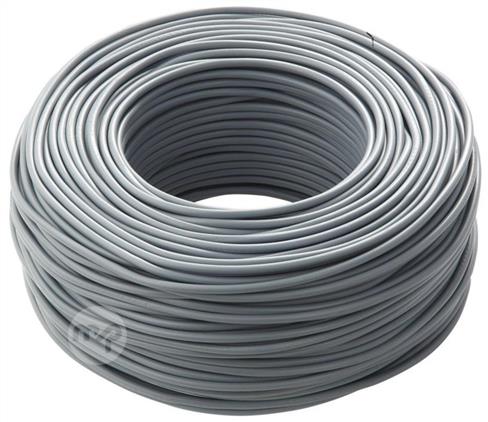

Multipolar electrical cable FROR 450/750-V 2x1.5mm² 100m hank Reference standards: CEI 20 - 22 II -CEI 20 - 20/1 -CEI 20 – 37/2 II ed. -CEI EN 60332-1-2 -CEI EN 50267-2-1 -2011/65/CE -2006/95/CE -2002/95/CE.  Cable Description: Flexible multicore cables for mobile installation insulated in PVC with fire-retardant PVC undersheaths and low emission of corrosive gases.  Conductor: In annealed red copper with a flexible round cord.  Soul Isolation: Polyvinyl chloride (PVC) TI2 quality.  Anime Color: 2x Brown / Blue  Sheath: Covered in TM2 quality polyvinyl chloride (PVC) sheath.  Sheath Color: Gray RAL 7035  Marking: Stamping on the insulation every 1 m. Technical features : Resistant to mechanical stress and chemical agents. Good behavior at low temperatures and good flexibility. Rated voltage: Uo/U: 450/750 V Maximum operating temperature: 70° C Minimum operating temperature: -15° C Maximum short circuit temperature: 160° C Installation conditions: Minimum installation temperature: 0°C Recommended minimum bending radius: 10 times the diameter of the cable for mobile installation, 4 times for fixed installation Maximum recommended tensile stress: 15 N/mm² of copper section for mobile installation, 50 N/mm² for fixed installation. Packaging: Skeins 100 meters Applications: Cables suitable for installation and mobile equipment in places with fire danger. The installation is foreseen inside normal or humid environments and temporarily in external environments. Recessed and underground installation is not foreseen even if protected. Conductor number  No Nominal Section    Indicative conductor diameter    Average insulation thickness Maximum external diameter Approximate weight    Electrical resistance at 20° C. Maximum Ω/Km 2X 1 1.3 0.7 8.7 74 19.5 1.5 1.6 0.7 9.2 89 13.3 2.5 1.9 0.8 11.2 134 7.98 4 2.5 0.8 12.5 178 4.95 6 3 0.8 13.9 242 3.3 3 G    1 1.3 0.7 9.1 88 19.5 1.5 1.5 0.7 9.8 108 13.3 2.5 2 0.8 11.9 163 7.98 4 2.5 0.8 13.5 227 4.95 6 3 0.8 14.9 305 3.3 4 G    1 1.3 0.7 9.9 105 19.5 1.5 1.5 0.7 10.9 133 13.3 2.5 2 0.8 12.9 200 7.98 4 2.5 0.8 14.7 278 4.95 6 3 0.8 16.3 375 3.3 5 G    1 1.3 0.7 11.1 135 19.5 1.5 1.5 0.7 12 167 13.3 2.5 2 0.8 14.3 252 7.98 4 2.5 0.8 16.5 351 4.95 6 3 0.8 18 476 3.3
