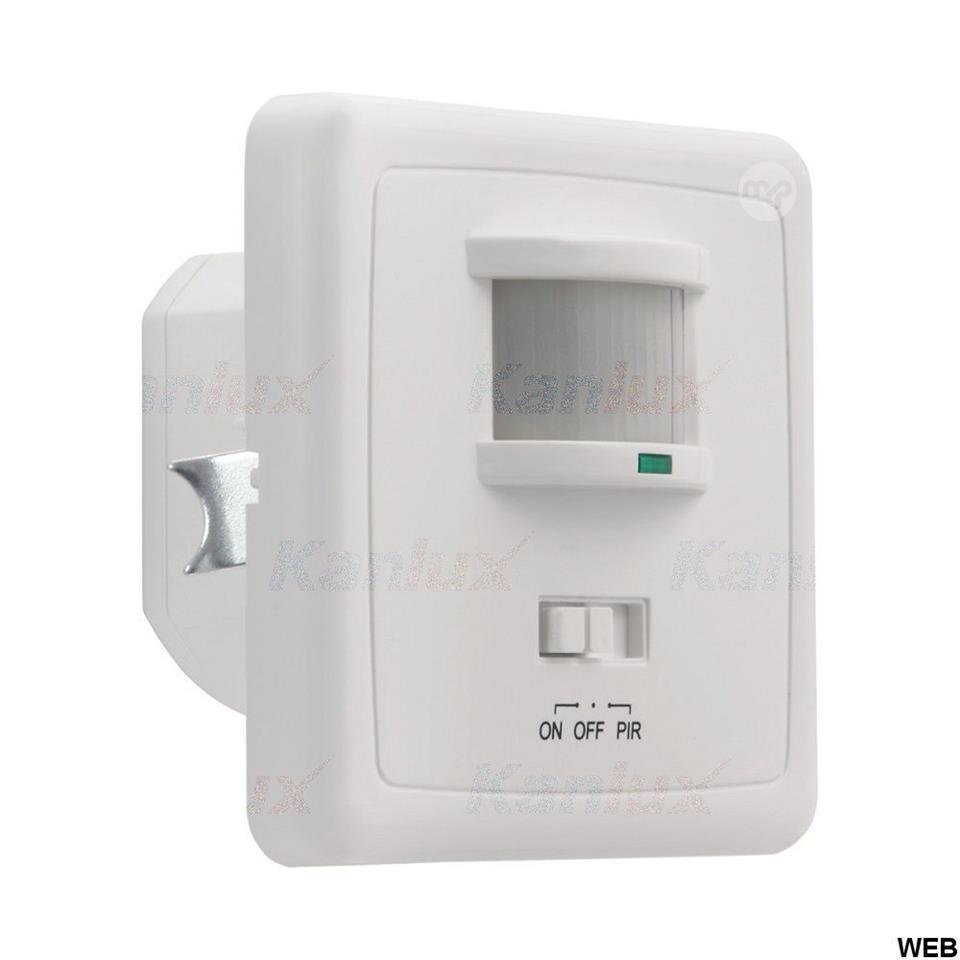

PIR MERGE JQ Kanlux motion sensor
Kanlux MERGE JQ Is the motion sensor with a maximum motion detection range of 5 meters.
Its horizontal operating angle is 360 degrees.
It is possible to adjust both the lighting time and the external lighting level at which the sensor works.

Background information
EAN13: 5905339076908
Vendor code: 7960
Color: white
Material: plastic material
Place of use: inside

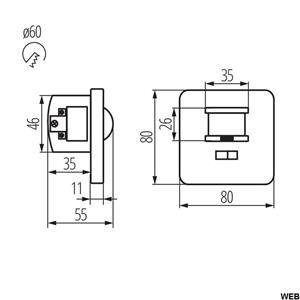

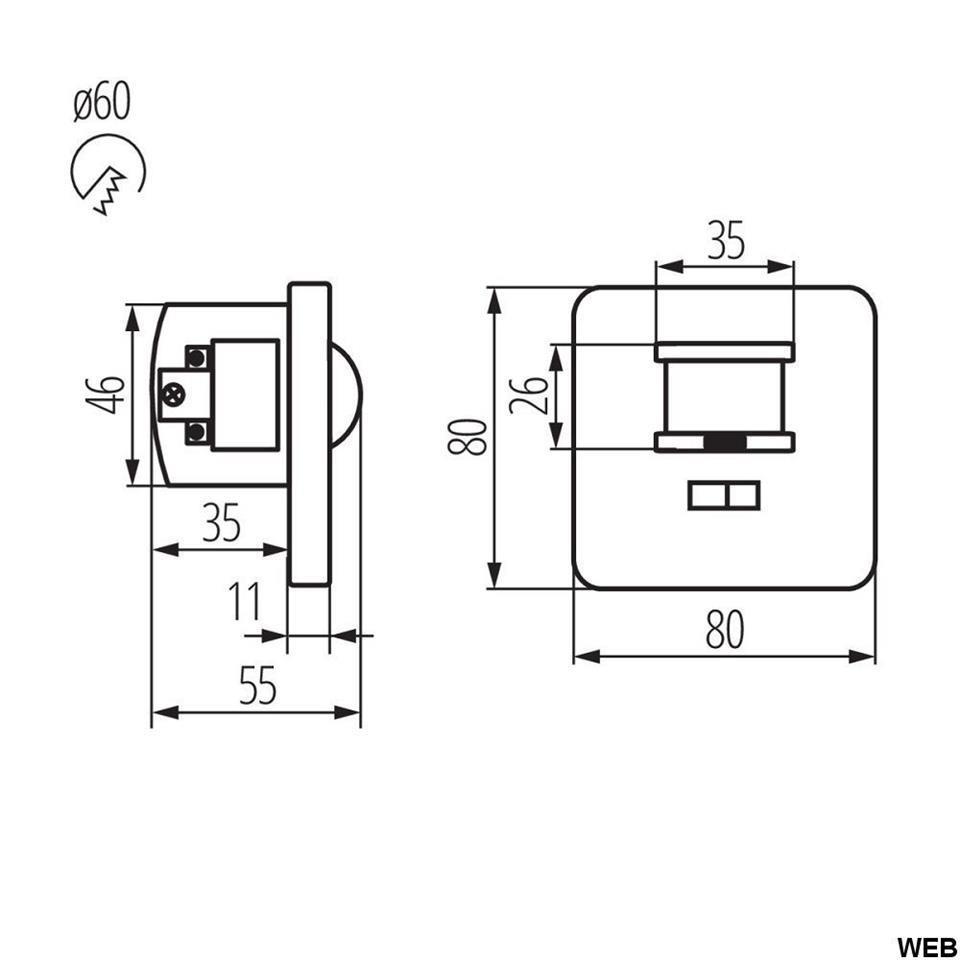

Weight and dimensions
Height [mm]: 83
Width [mm]: 55
Length [mm]: 83
Weight: 108g

Technical data
Voltage nominal [V]: 220-240 AC
Nominal frequency [Hz]: 50/60
Color: white
Maximum power [VA]: 1200
IP degree 20
Mounting location: for flush mounting in the wall
Degree of protection against electric shock: II
Possibility of mounting on normally flammable surfaces: yes
Sensor range [m]: max 9
Range of action of the sensor [ø]: H150 / V60
Minimum run time [s]: 10
Maximum running time [min]: 7
Sensor operating time [second-minute]: 10-7
Sensor type: PIR
Setting the intensity of illumination with which the sensor detects motion [lx]: 3-2000
Micro-interval between relay contacts
Operating temperature [°C]: 5÷25
Type of connection: terminal block
Sections of cables used [mm]: 1÷2,5
