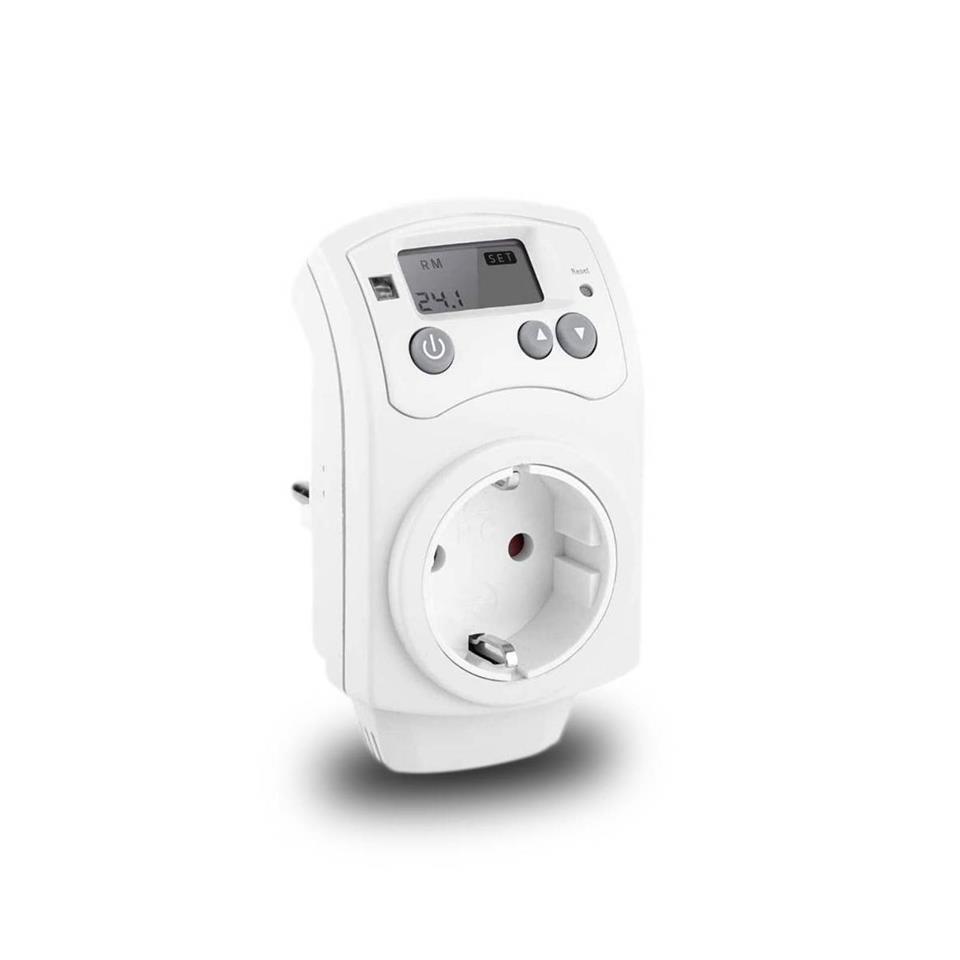

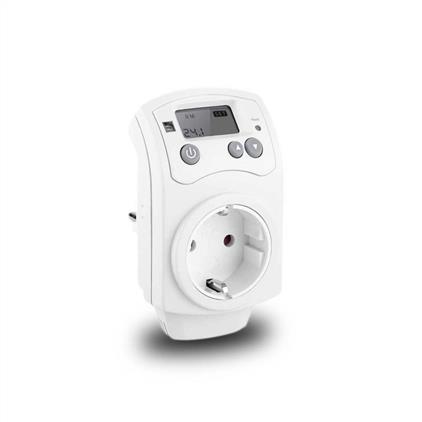

Electronics Reversible Thermostat Socket, heating cooling controller * Cornwall*

This unit is designed to control heating / cooling as needed. In the first case, connecting the power unit when it detects temperatures below the set point, in the second connects the electrical current is detected recorded temperatures above the point.


Operating voltage: 230 v AC/50 Hz.
Resistance load (max.): 16A - 3680 W.
Inductive load (max.): 2A - 460 W.
Operating temperature: 0°C ~ 40°C.
Storage temperature: -10°C ~ 50°C.
Temperature control scale: 5°C (40°) F ~ 30°C (85°F)
Accuracy: +/- 1°C.
Measuring frequency: 10 s.
